SNUGLITE-III (2022-)

Seoul National University GNSS Laboratory Satellite (SNUGLITE)-III Project

• 3U+3U CubeSat mission (Launch: Nov 2025)
• Funded by Korea Aerospace Research Institute (KARI)
• Finalist in the 2022 Korea CubeSat Competition

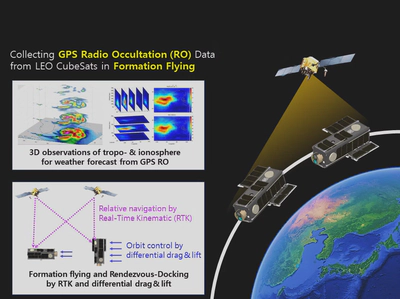

SNUGLITE-III 임무 개념도

System

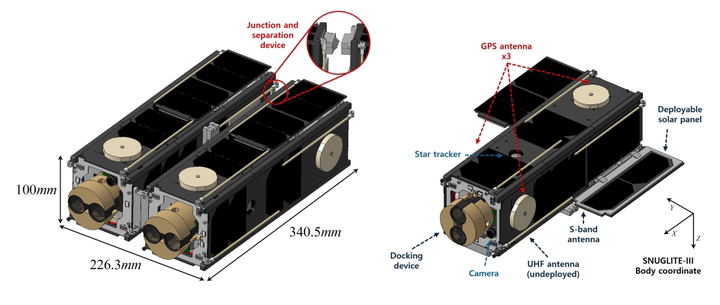

• 3U+3U Twin CubeSat
• Main payloads:
  • L1/L2C GPS receiver x3
  • Inter-satellite link module
  • Electomagnetic docking device
• Mass: 3.2 kg
• Orbit: SSO 600km (LTAN 12h30m)​

Frequency:

• UHF (MHz)
  • downlink : beacon, command-return
  • uplink : tele-command
• S-band (2405MHz)
  • downlink : housekeeping data, mission data
